Product overview

Products Matching Your Selection

50 products with visible key parameters

SF6 Leak Detector
SF6

SF6 Leakage Detector

SF6 Leak Detector

Portable SF6 leakage detection equipment for switchgear rooms, GIS maintenance, and field service teams.

Gas
SF6
Method
Infrared detection
Use
Leak location and maintenance inspection
  • Infrared principle for accurate SF6 leakage detection
  • Built for routine inspections and emergency troubleshooting

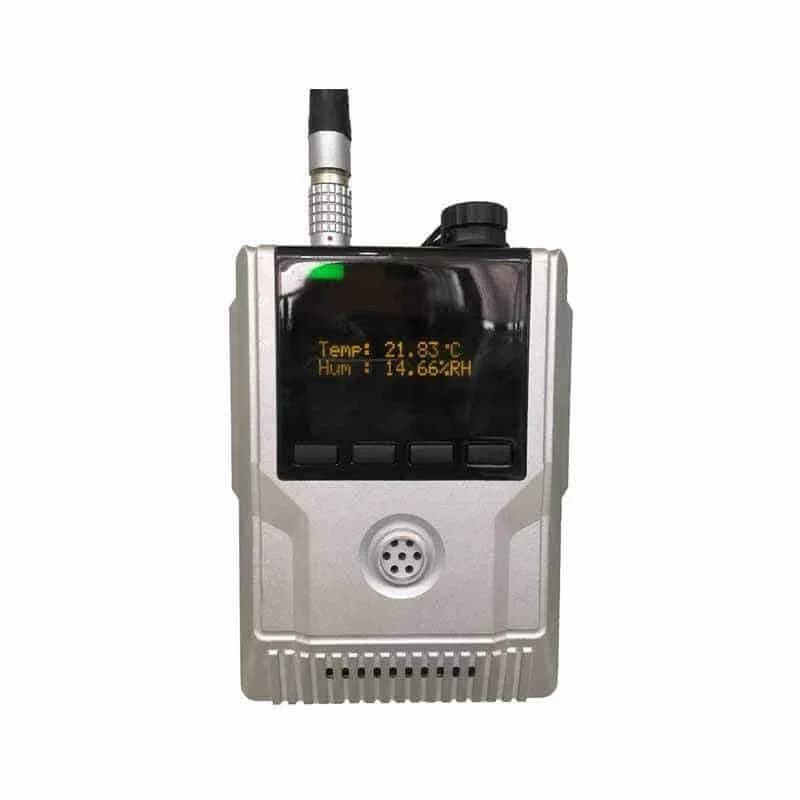

SF6 Room Monitor
SF6

SF6 Leakage Detector

SF6 Room Monitor

Fixed SF6 room monitoring system for continuous safety supervision in GIS rooms and power facilities.

Output
Alarm and monitoring signal
Installation
Wall-mounted / fixed
Scenario
GIS room and substation
  • Continuous monitoring for SF6 gas leakage risk
  • Suitable for indoor substations and GIS rooms
RA-912F Portable SF6 Multi Analyzer
SF6

SF6 Gas analyzer

RA-912F Portable SF6 Multi Analyzer

Portable 3-in-1 SF6 analyzer for purity, dew point, and SO2 measurement, with optional decomposition-product channels for field gas-quality checks.

Purity range
0 to 100 vol.%
Purity response
< 30 s
Power supply
100 to 240 VAC, 50/60 Hz
Model
RA-912F
Type
Portable comprehensive SF6 multi analyzer
  • Measures SF6 purity, moisture, and SO2 in one portable instrument
  • TFT touch screen, built-in printer, USB interface, and storage for up to 500 records

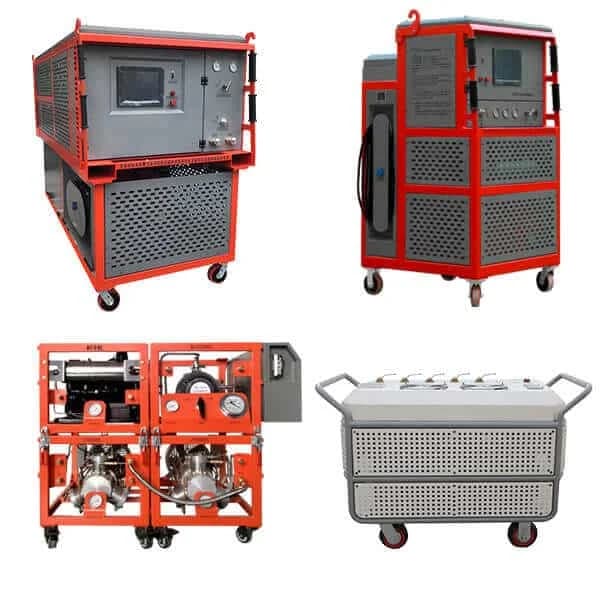

SF6 Service Carts
SF6

SF6 Service carts

SF6 Service Carts

SF6 handling units for recovery, evacuation, filling, purification, and gas storage operations.

Gas
SF6
Recovery speed range
4 to 30 m3/h by model
Vacuum compressor
3.6 to 30 m3/h by model
Vacuum pump
16 to 64 m3/h by model
Functions
Recover / evacuate / fill / purify
  • Complete SF6 gas handling for utility maintenance
  • Covers recovery, evacuation, filling, and storage operations

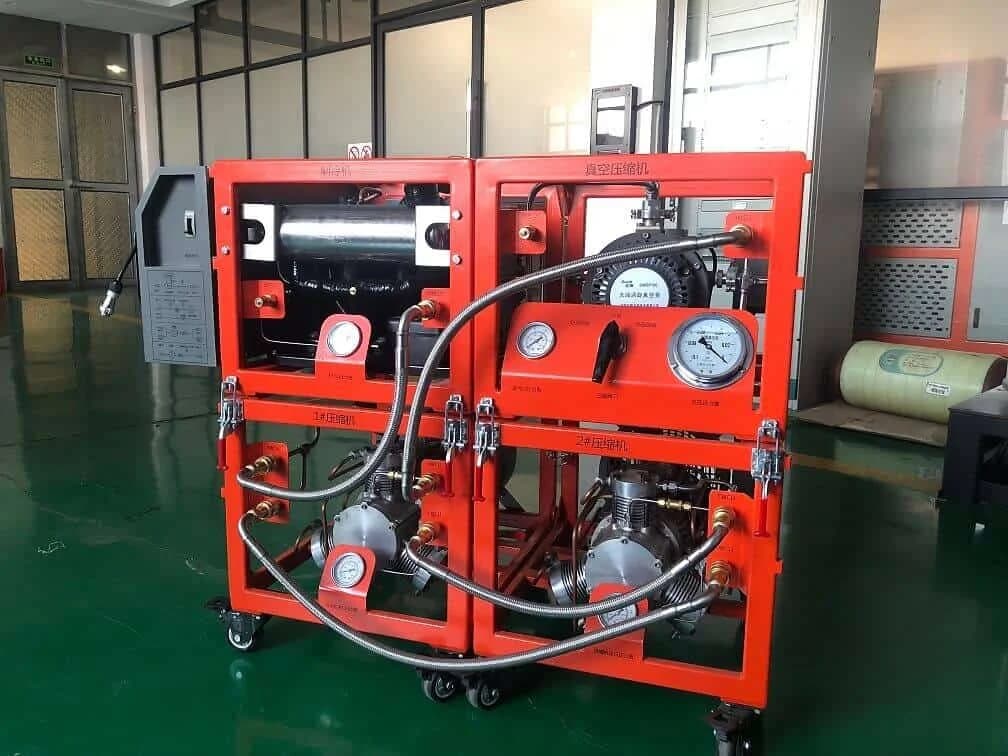

RFA Modular SF6 Gas Cart
SF6

SF6 Service carts

RFA Modular SF6 Gas Cart

Modular SF6 gas recovery cart for small gas compartments, flexible module combination, and field maintenance work.

Gas
SF6
Module combination
2 to 6 functional modules
Recommended gas quantity
0 to 50 kg small SF6 gas compartments
Recovery final vacuum
< 0.1 mbar on current published configuration
Oil-free compressor
1 unit, 4 m3/h standard configuration
  • 2 to 6 functional modules can be combined for different working conditions
  • Oil-free compressor and oil-free vacuum compressor help avoid SF6 gas contamination

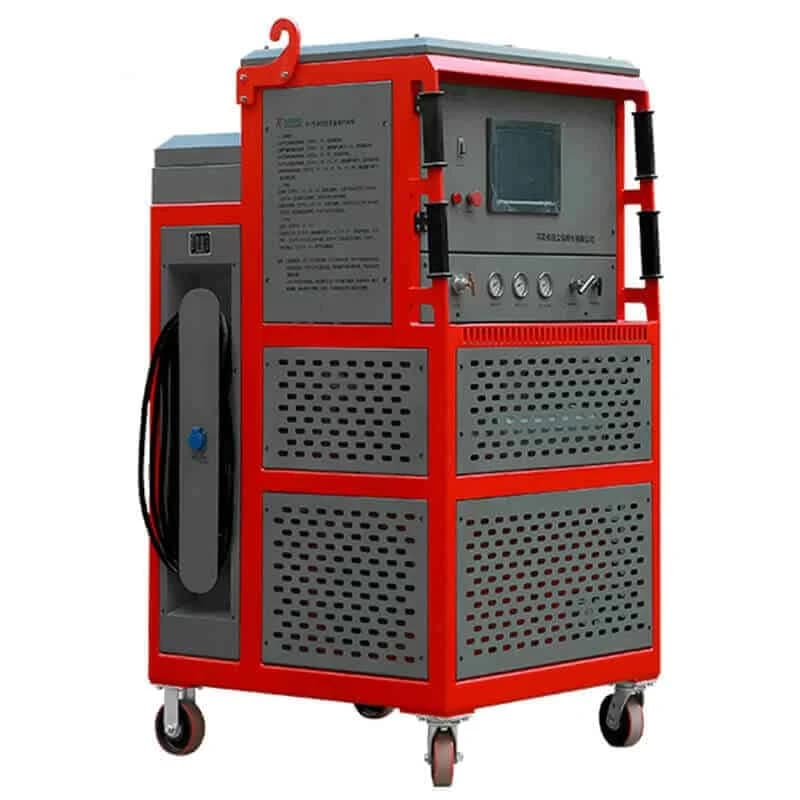

RF051 Compact SF6 Gas Recovery
SF6

SF6 Service carts

RF051 Compact SF6 Gas Recovery

Compact SF6 recovery unit for evacuation, gas recovery, refilling, and cylinder pressurizing service.

Gas
SF6
Application range
Small and medium gas-insulated switchgear; 72.5 to 220 kV circuit breakers; 110 kV GIS
Model options
12 standard configurations
Control modes
Manual (H), one-button (K), touch screen (T)
Vacuum pump options
17 m3/h (B1) or 64 m3/h (B2)
  • 12 standard configurations for different control, vacuum pump, and storage tank requirements
  • Compact mobile design for substations, repair work, and limited-space field environments

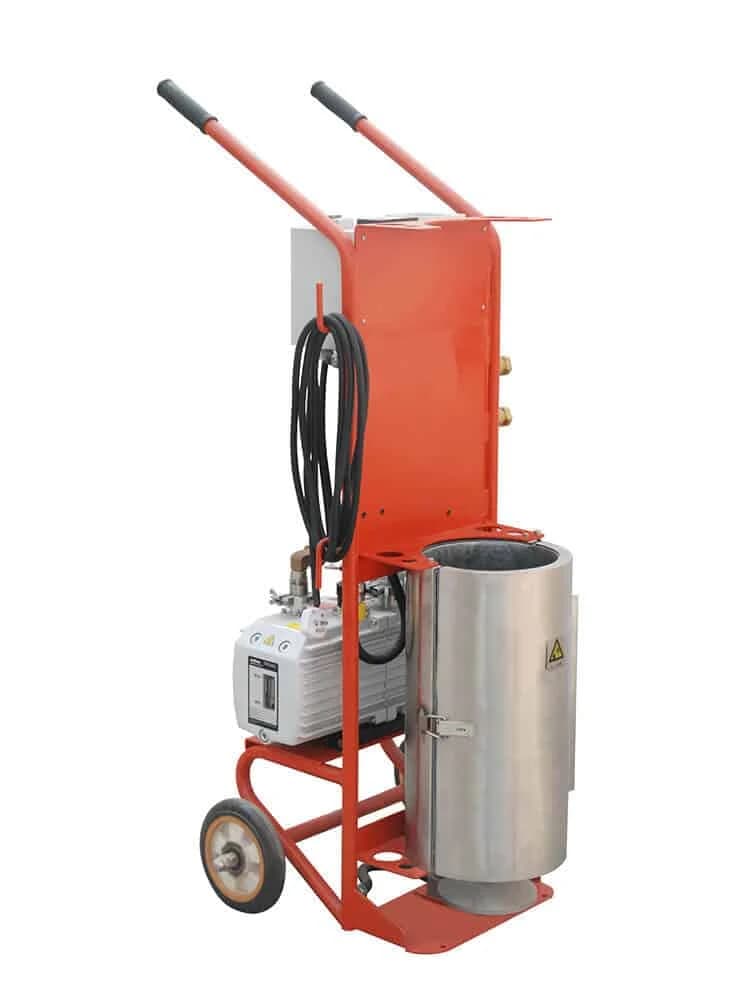

SF6 Gas Filling Cart
SF6

SF6 Service carts

SF6 Gas Filling Cart

SF6 refilling and evacuating device for gas insulated switchgear maintenance and commissioning.

Filling pressure
Reduced to desired pressure by integrated pressure reducer
Type
Mobile filling cart
Function
Fill / evacuate
Equipment
Gas insulated switchgear
Pressure units
bar, psi and kPa
  • Designed for SF6 filling and evacuation workflows
  • Useful for switchgear maintenance and commissioning

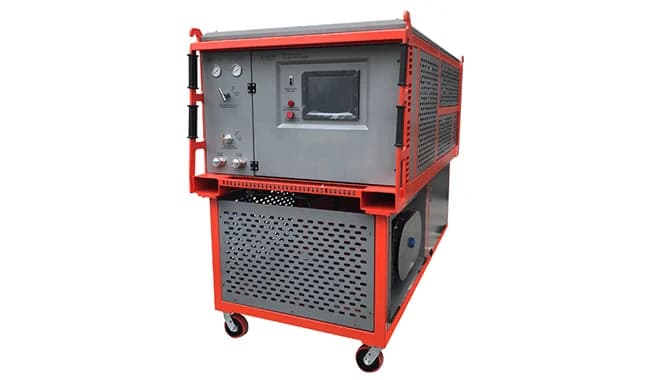

RF151 MID SF6 Gas Handling
SF6

SF6 Service carts

RF151 MID SF6 Gas Handling

Medium SF6 gas handling unit for vacuum evacuation, gas recovery, refilling, cylinder pressurizing, and vaporized gas output.

Gas
SF6
Application range
10 to 40.5 kV gas-insulated switchgear; 72.5 to 330 kV circuit breakers and GIS; 500 kV circuit breakers
Model options
10 standard configurations
Control modes
One-button control (K) or touch screen control (T)
Vacuum pump options
17 m3/h (B1) or 64 m3/h (B2), final vacuum <= 10 Pa
  • 10 standard configurations with control, vacuum compressor, vacuum pump, and tank options
  • PLC control and touch screen operation make the process simple and clear

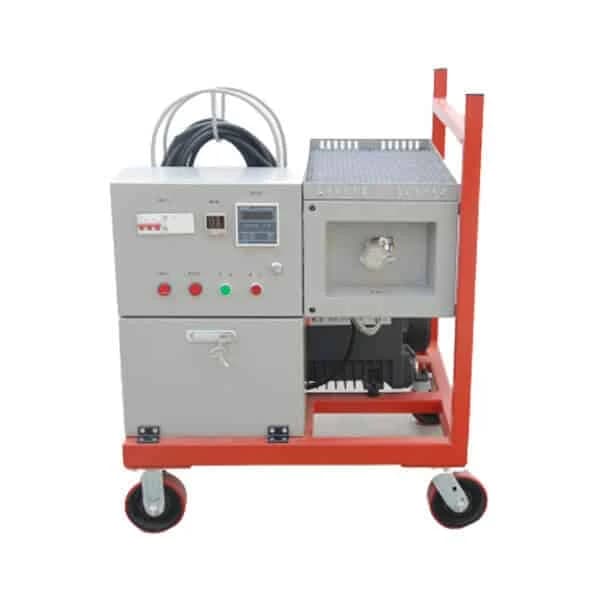

Mobile SF6 Vacuum Pump Unit
SF6

Mobile SF6 Vacuum Pump Unit

Mobile vacuum pump unit for evacuating SF6 gas compartments before filling and commissioning.

Evacuation speed
17 / 64 / 100 / 200 / 300 m3/h by model
Final vacuum
< 1 mbar
Function
Vacuum evacuation
Mobility
Mobile
Use
Before SF6 filling
  • Mobile vacuum unit for SF6 gas compartment preparation
  • Supports evacuation before refilling operations

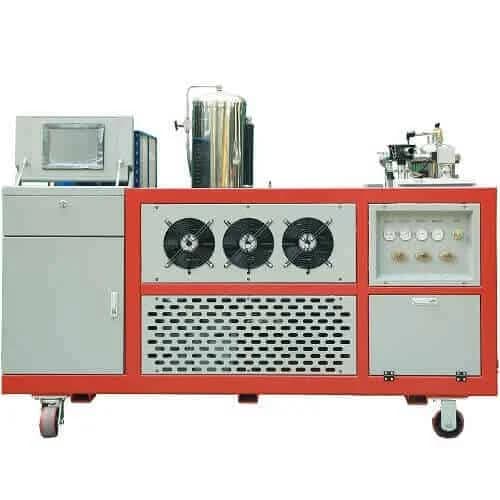

SF6 Regeneration System
SF6

SF6 Service carts

SF6 Regeneration System

Medium to large SF6 recovery and regeneration system with PLC control, purification, circulation purification, and refilling functions.

Gas
SF6
Recovery speed
150 kg/h max.
Vacuum compressor
15 m3/h
Vacuum pump
64 m3/h
Final vacuum
<= 10 Pa
  • PLC intelligent control with touch screen one-button operation
  • Molecular sieve regeneration and refrigeration circulation purification

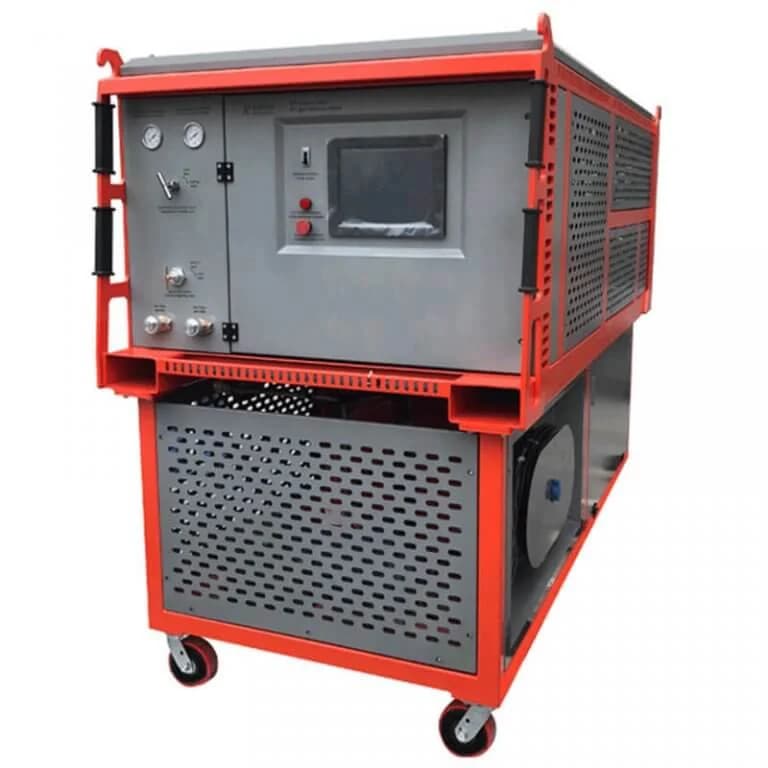

RF391 Mega SF6 Gas Handling
SF6

SF6 Service carts

RF391 Mega SF6 Gas Handling

Mega SF6 gas handling unit for approximately 200 to 500 kg SF6 recovery, evacuation, refilling, and large GIS maintenance work.

Gas
SF6
Application range
Large GIS and high-voltage SF6 equipment
Control modes
One-button control (K) or touch screen control (T)
Recommended gas quantity
200 to 500 kg per service operation
Vacuum pump options
64 / 100 / 200 / 300 m3/h, final vacuum <= 10 Pa
  • Designed for approximately 200 to 500 kg large-volume SF6 gas handling
  • Multiple compressor, vacuum-pump, Roots-pump, voltage, and storage-tank options for project-specific requirements

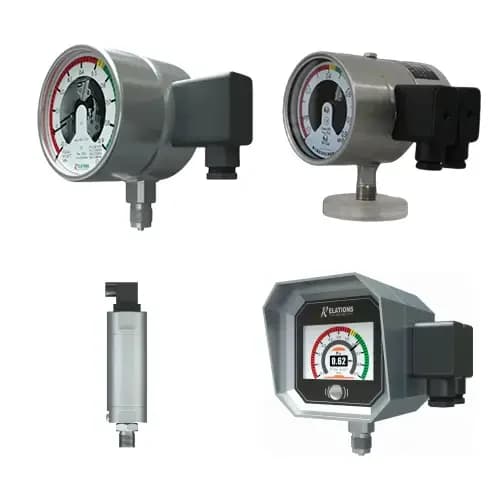

SF6 Gas Density Indicator Transmitter
SF6

SF6 Gas Density

SF6 Gas Density Indicator Transmitter

SF6 gas density indicator and transmitter for monitoring gas pressure and density conditions.

Parameter
Gas density
Format
Indicator / transmitter
Use
Switchgear monitoring
  • Density supervision for SF6 gas insulated equipment
  • Indicator and transmitter format for monitoring systems

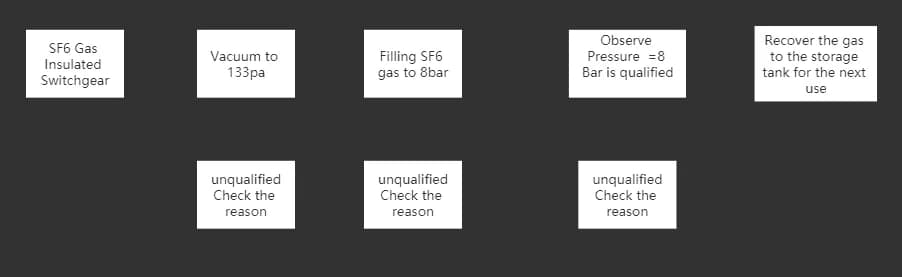

SF6 Gas System for GIS Manufacturers
SF6

SF6 Gas System

SF6 Gas System for GIS Manufacturers

SF6 gas system solutions for gas insulated switchgear manufacturers and production line applications.

Customer
GIS manufacturers
Scope
System solution
Workflow
Production gas handling
  • SF6 gas system for GIS manufacturing workflows
  • Supports production, testing, filling, and recovery processes

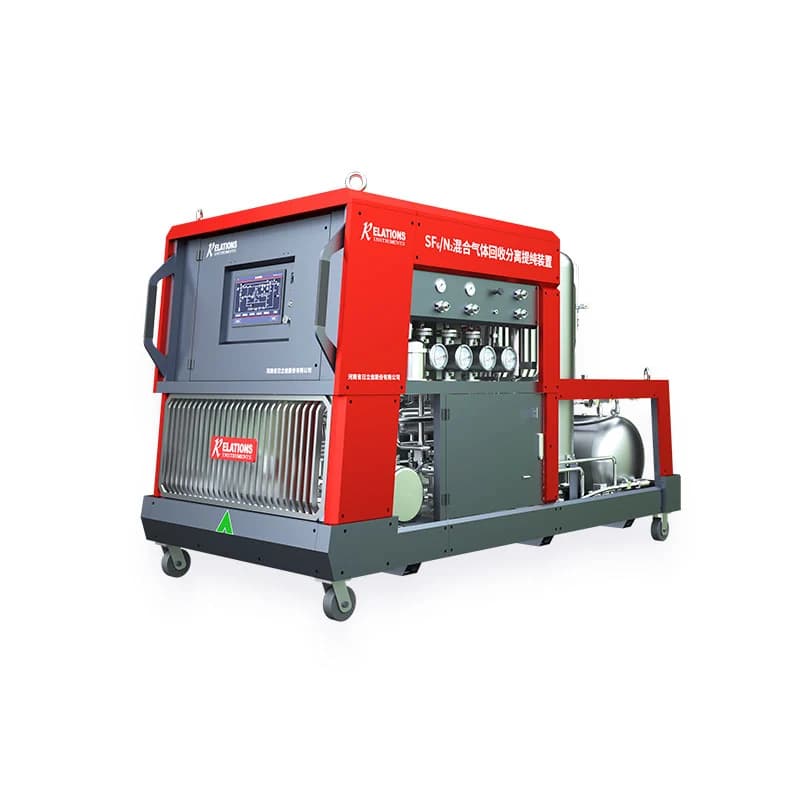

RF151M Mixed Gas Recovery Separation Unit
Alternative arc quenching and insulating gases

SF6 Service carts

RF151M Mixed Gas Recovery Separation Unit

Recovery and separation unit for SF6/N2 mixed insulating gas, designed for online separation and SF6 reuse.

Gas
SF6 / N2 mixed insulating gas
Vacuum pump
64 m3/h
Compressor
Oil-free compressor, 15 m3/h
Power supply
AC 380 V, 50 Hz
Model
RF-151M
  • Designed for SF6/N2 mixed insulating gas recovery and separation
  • Membrane separation technology separates SF6 and N2 efficiently

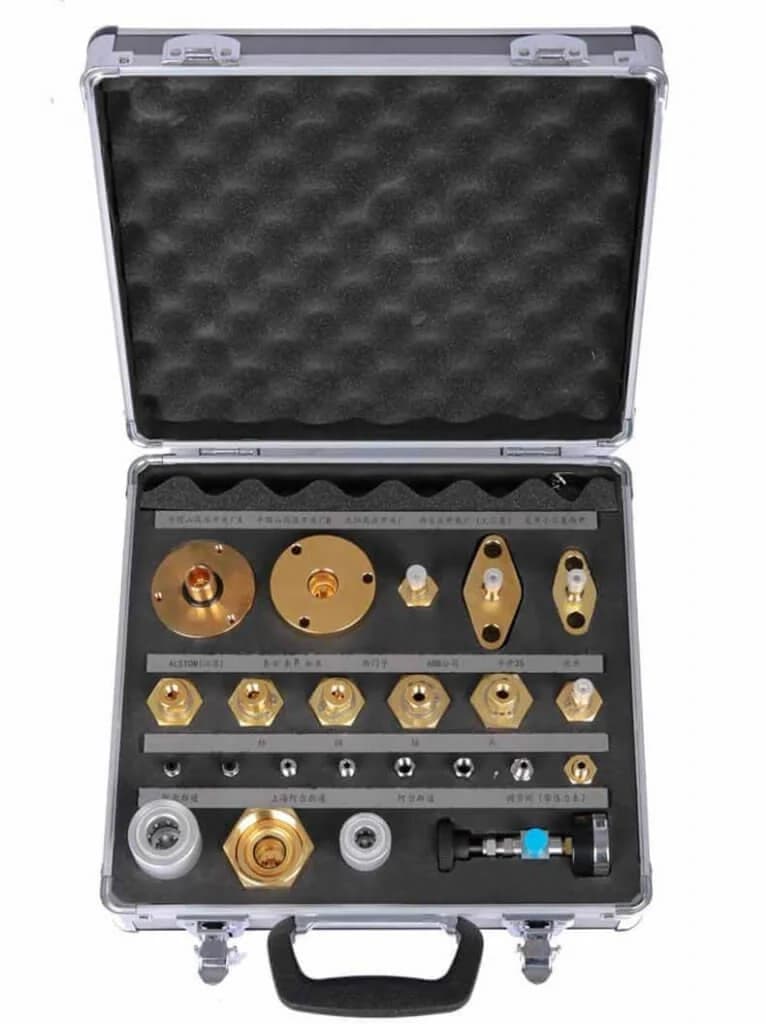

SF6 Gas Fittings
Accessories

coupling

SF6 Gas Fittings

SF6 gas fittings, refilling couplings, and connection accessories for gas handling systems.

Type
Fittings and couplings
Use
Connection and refilling
Compatibility
SF6 handling systems
  • Connection accessories for SF6 gas handling
  • Suitable for refilling couplings and service interfaces

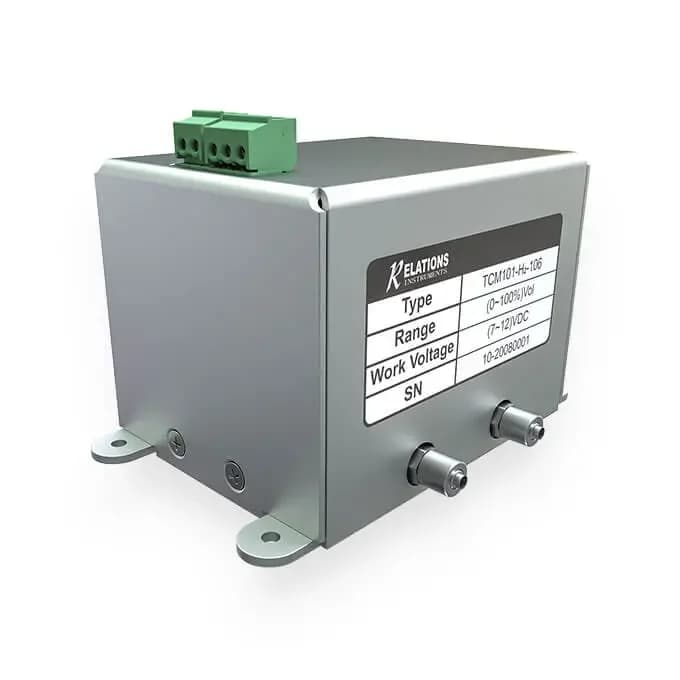

TCM101-H2 Hydrogen Purity Sensor
H2

H2 Sensors

TCM101-H2 Hydrogen Purity Sensor

Compact hydrogen concentration sensing for hydrogen leak monitoring, integrated equipment, and industrial hydrogen applications.

Detection range
(0.2 to 4) %Vol; (0.2 to 10) %Vol
Accuracy
Plus or minus 5% F.S
Response time
Less than 3 seconds
Resolution
0.01 %Vol
Gas
Hydrogen gas (H2)
  • No reference gas required for compact hydrogen measurement
  • MEMS thermal conductivity design for embedded equipment integration

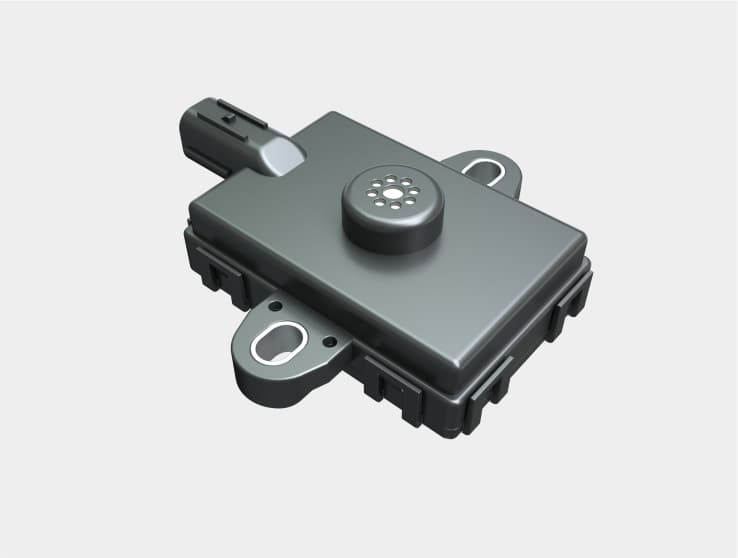

TCM200 Micro Hydrogen Concentration Detector
H2

H2 Sensors

TCM200 Micro Hydrogen Concentration Detector

Compact hydrogen concentration detection for embedded equipment and flexible industrial integration.

Detection range
0.2 to 4 %Vol; 0.2 to 10 %Vol
Measurement error
Plus or minus 5% F.S
Response time
Less than 3 s (T90)
Resolution
0.01 %Vol
Output
4 to 20 mA, 0 to 5 V, RS-485, or CAN
  • Compact detector module for embedded hydrogen equipment
  • Multiple output options for instrumentation integration

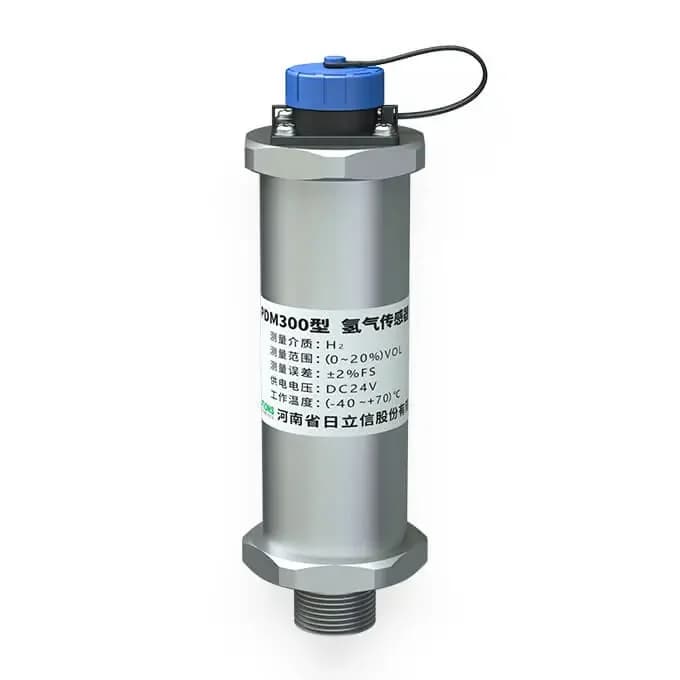

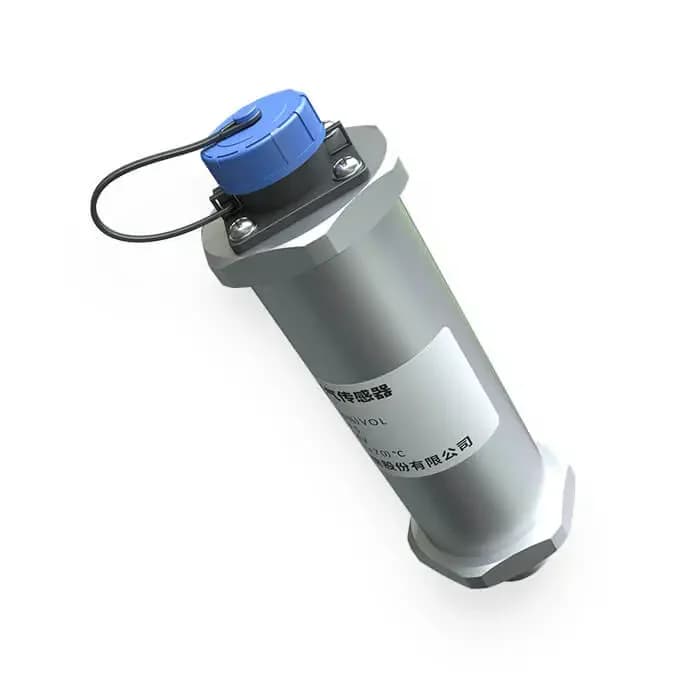

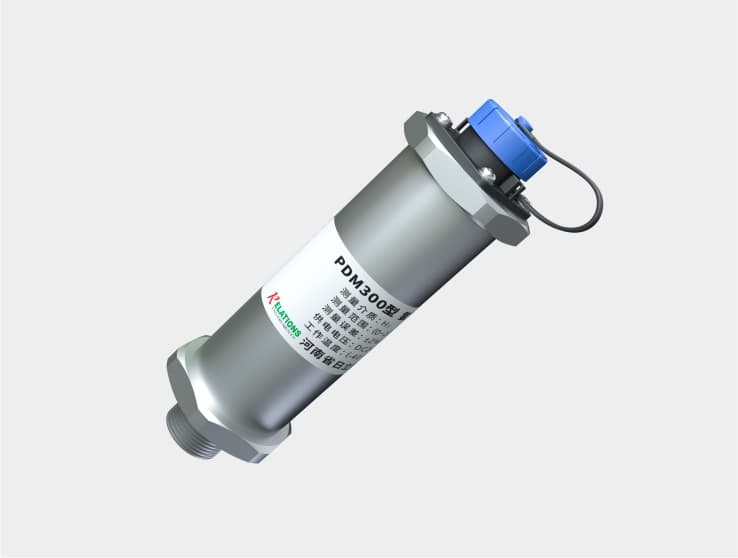

PDM300 Industrial Hydrogen Concentration Sensor
H2

H2 Sensors

PDM300 Industrial Hydrogen Concentration Sensor

Industrial online hydrogen concentration sensing for harsh environments and continuous process monitoring.

Range
0 to 20 %Vol, customizable
Measurement error
Plus or minus 2% F.S
Response time
Less than 30 s
Output
RS-485 or 4 to 20 mA
Gas
Hydrogen gas (H2)
  • Pipeline type sensor for continuous hydrogen concentration monitoring
  • Palladium alloy thin-film principle for industrial applications
FC-H2 Fuel Cell Hydrogen Sensor
H2

H2 Sensors

FC-H2 Fuel Cell Hydrogen Sensor

Low-concentration hydrogen sensing for fuel cell systems, compact safety modules, and embedded equipment monitoring.

Range
0 to 1000 ppm
Accuracy
Plus or minus 3% F.S
Response time
Less than 60 s
Gas
Hydrogen gas (H2)
Model
FC-H2
  • Low ppm hydrogen sensing for fuel cell safety applications
  • Micro fuel cell principle with linear output behavior

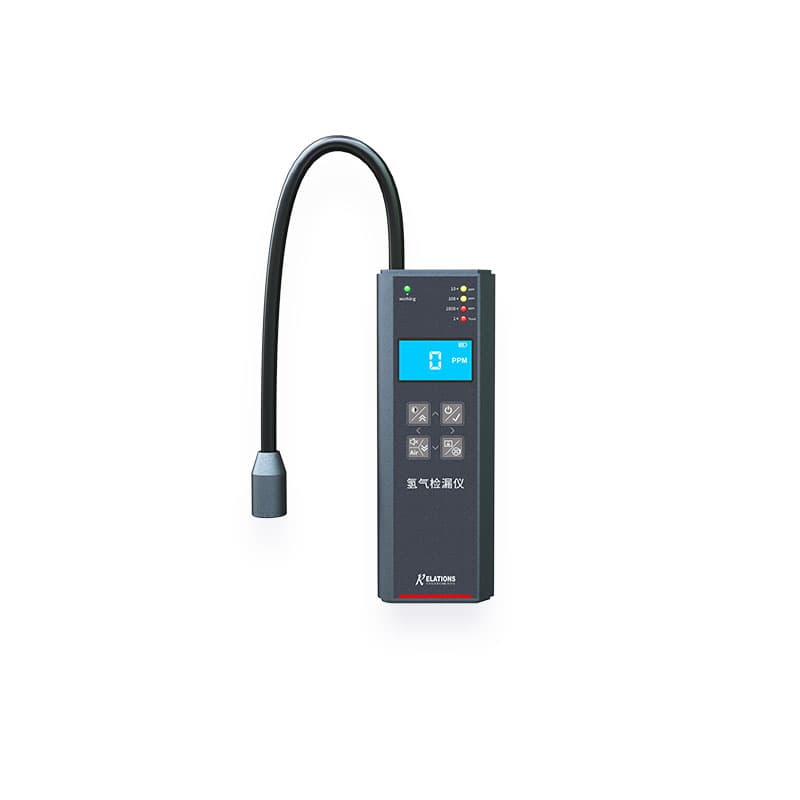

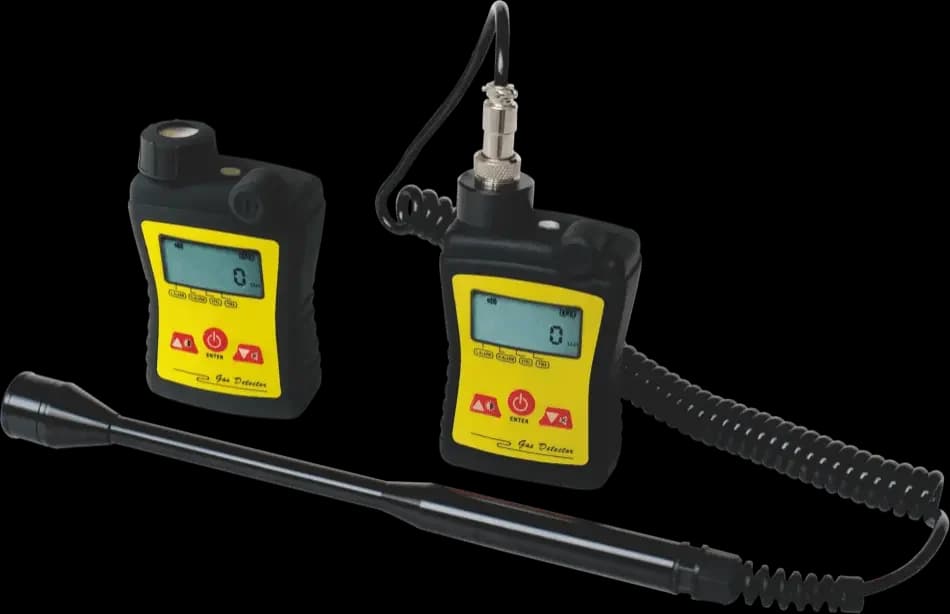

NA-1 Portable Hydrogen Leak Detector
H2

H2 Leakage monitoring

NA-1 Portable Hydrogen Leak Detector

Portable hydrogen leak detection with dual-sensor, dual-range measurement for maintenance inspection and industrial hydrogen safety applications.

Detection range
(0 to 1000) ppm; (0.1 to 4) %Vol
Accuracy
30% for ppm range; plus or minus 5% F.S for %Vol range
Response time
Less than 2 seconds
Resolution
1 ppm
Gas
Hydrogen gas (H2)
  • Dual-sensor detection with automatic range switching
  • Pump suction measurement for maintenance inspection workflows
NA-8 Hydrogen Gas Detection Alarm Instrument
H2

H2 Leakage monitoring

NA-8 Hydrogen Gas Detection Alarm Instrument

Portable hydrogen detection and alarm support for elevated leak inspection, hard-to-reach hydrogen systems, and industrial safety applications.

Detection range
(0 to 100) %LEL
Accuracy
Less than or equal to plus or minus 5% F.S
Response time
Less than 30 seconds
Gas
Hydrogen gas (H2)
Model
NA-8
  • Telescopic probe supports elevated hydrogen leak inspection
  • Designed for joints, flanges, coolers, dryers, and fans

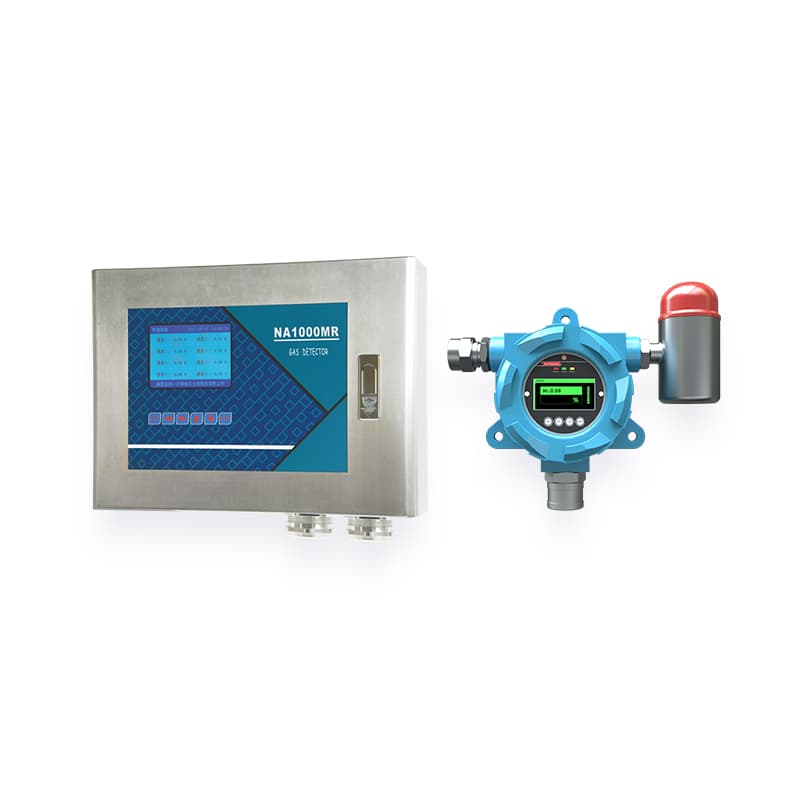

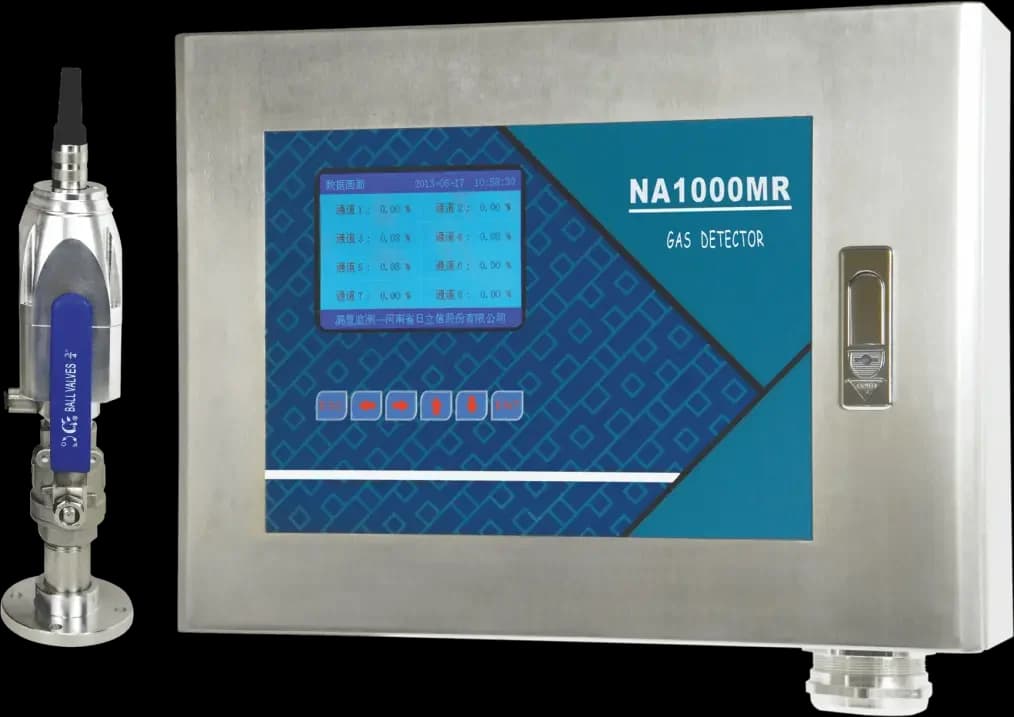

NA1000MS Fixed Hydrogen Leak Monitoring System
H2

H2 Leakage monitoring

NA1000MS Fixed Hydrogen Leak Monitoring System

Fixed hydrogen leak monitoring for continuous online safety coverage, multi-point monitoring, and alarm control support.

Output
1 to 8 channels of 4 to 20 mA current output, up to 16 channels
Explosion-proof rating
Ex ia IIC T4 Ga
Model
NA1000MS
Type
Fixed multi-channel hydrogen leak monitoring and alarm system
Sampling method
Natural diffusion
  • Centralized fixed hydrogen monitoring for generator and hydrogen operating points
  • Controller supports multi-channel 4 to 20 mA transmitters

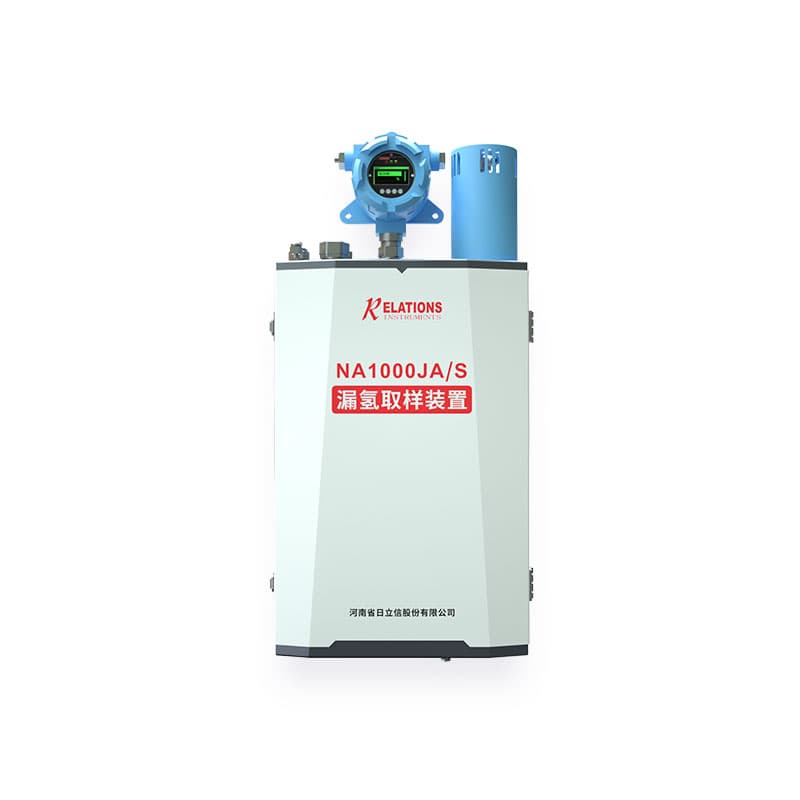

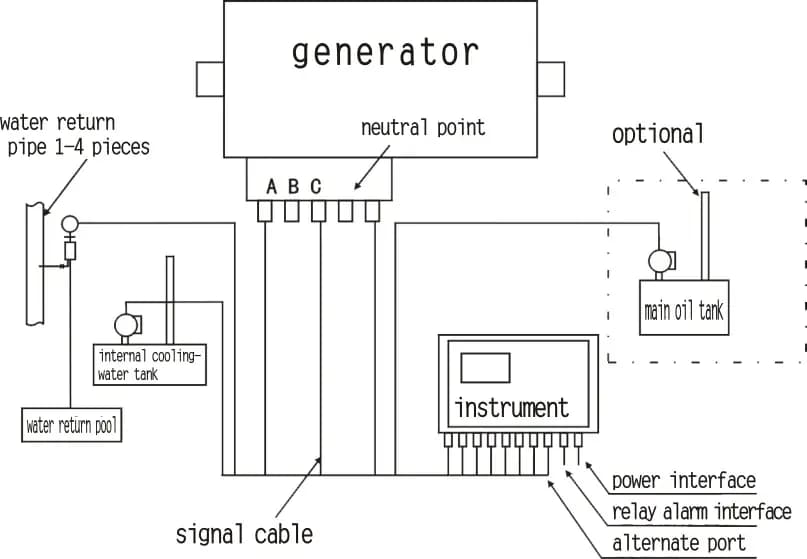

NA1000JA Online Hydrogen Leak Monitoring System
H2

H2 Leakage monitoring

NA1000JA Online Hydrogen Leak Monitoring System

Online hydrogen leakage monitoring for generator cooling-water applications, leak-volume tracking, and hydrogen removal support.

Hydrogen concentration
Up to 20 %
Output
RS-485
Inlet pressure
0.4 to 0.6 MPa
Model
NA1000JA
Type
Online hydrogen leak volume and concentration monitoring system
  • Monitors hydrogen concentration, daily leak volume, and exhaust volume
  • Designed for inner cooling water tank hydrogen applications

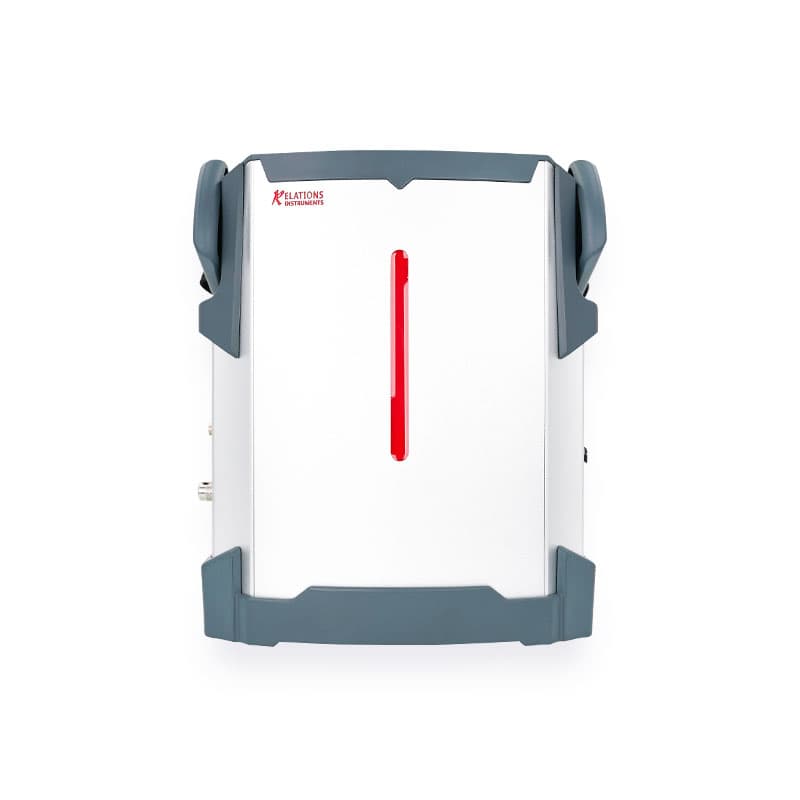

RA601H-II Portable Hydrogen Analyzer
H2

H2 Gas analyzers

RA601H-II Portable Hydrogen Analyzer

Portable hydrogen analysis for hydrogen purity, humidity, oxygen content, and gas replacement checks in field workflows.

Purity range
H2/Air 90 to 100%; CO2/H2 0 to 100%; CO2/Air 0 to 100%
Humidity range
-80 to 20 C
Oxygen range
0 to 25 %
Purity response
Less than or equal to 15 seconds
Power
AC/DC dual use, built-in 6000 mAh lithium battery
  • Portable purity, humidity, and oxygen analysis for field workflows
  • Supports hydrogen replacement stage checks with optional gases
7866+7872D Hydrogen Purity Analyzer
H2

H2 Gas analyzers

7866+7872D Hydrogen Purity Analyzer

Online hydrogen purity analysis for generator hydrogen cooling systems and gas replacement monitoring in power plant applications.

Measurement range
0 to 100 % CO2 in air; 0 to 100 % H2 in CO2; 75 to 100 % H2 in air
Accuracy
Plus or minus 2% F.S under standard conditions
H2 response time
63%: 13 s; 90%: 23 s
CO2 response time
63%: 24 s; 90%: 45 s
Output
4 to 20 mA, factory setting 75 to 100 % H2 in air
  • Online hydrogen purity analyzer with sampling system
  • Covers CO2 in air, H2 in CO2, and H2 in air measurement stages

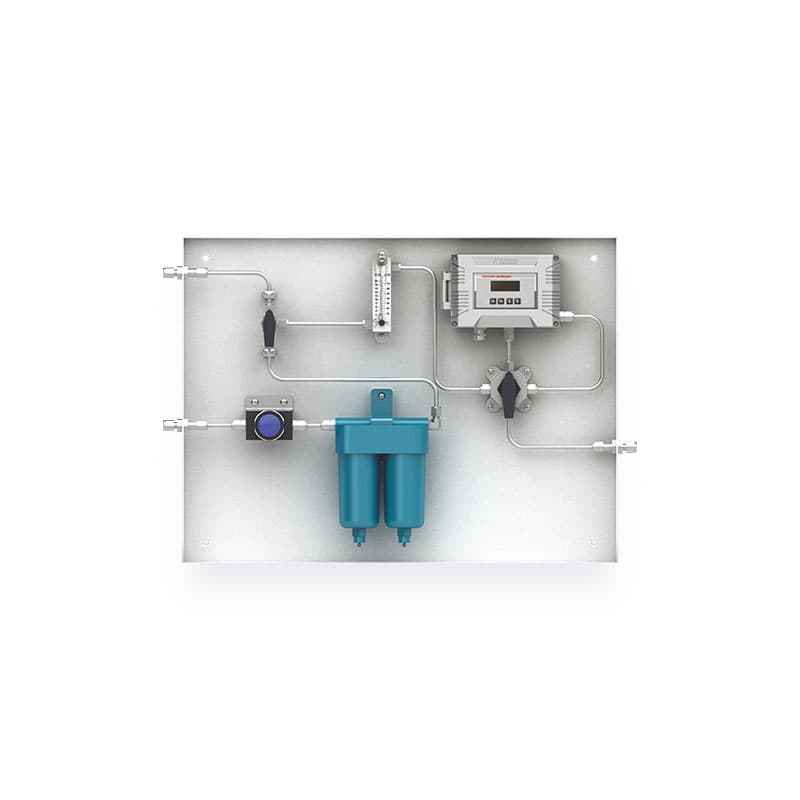

RA1630B Oxygen in Hydrogen Analyzer
H2

H2 Gas analyzers

RA1630B Oxygen in Hydrogen Analyzer

Real-time oxygen-in-hydrogen analysis for hydrogen-cooled generator systems and power industry safety monitoring.

Range
0 to 2 % O2
Accuracy
Plus or minus 0.03%
Response time
20 s
Output
4 to 20 mA, maximum load 800 ohm
Explosion-proof rating
Ex ia IIC T4 Ga
  • Fixed oxygen-in-hydrogen analyzer for safety monitoring
  • Programmable alarm outputs for process supervision

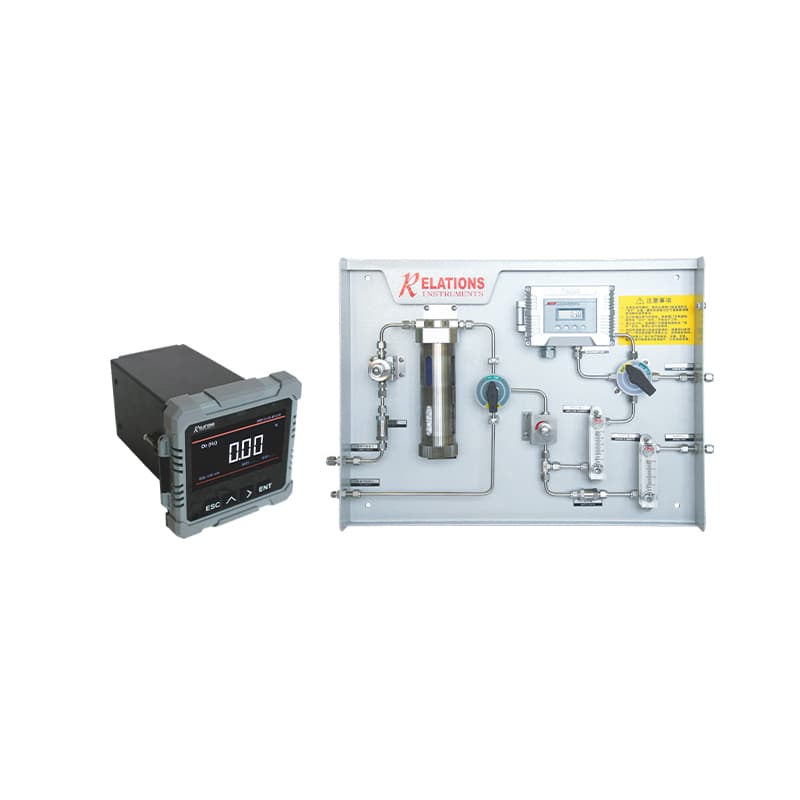

RA1630 Online Oxygen in Hydrogen Analyzer
H2

H2 Gas analyzers

RA1630 Online Oxygen in Hydrogen Analyzer

Fixed online oxygen-in-hydrogen analysis for hydrogen quality monitoring and safer industrial hydrogen operation.

Range
Available on request
Accuracy
Available on request
Explosion-proof rating
Available on request
Power supply
Available on request
Model
RA1630
  • Continuous oxygen-in-hydrogen analysis in fixed hydrogen systems
  • Supports hydrogen quality and process safety monitoring

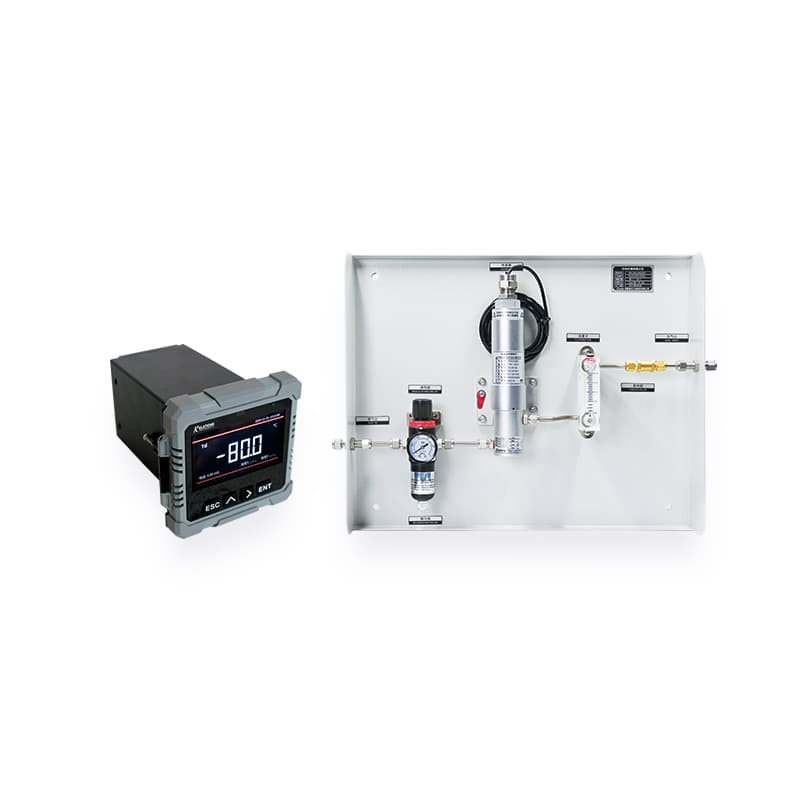

RA242J Online Precision Dew Point Meter
H2

H2 Gas analyzers

RA242J Online Precision Dew Point Meter

Fixed online dew point and moisture monitoring for hydrogen quality control and industrial gas process support.

Range
Available on request
Accuracy
Available on request
Explosion-proof rating
Available on request
Power supply
Available on request
Model
RA242J
  • Continuous dew point monitoring in hydrogen and process gas systems
  • Supports hydrogen moisture condition control

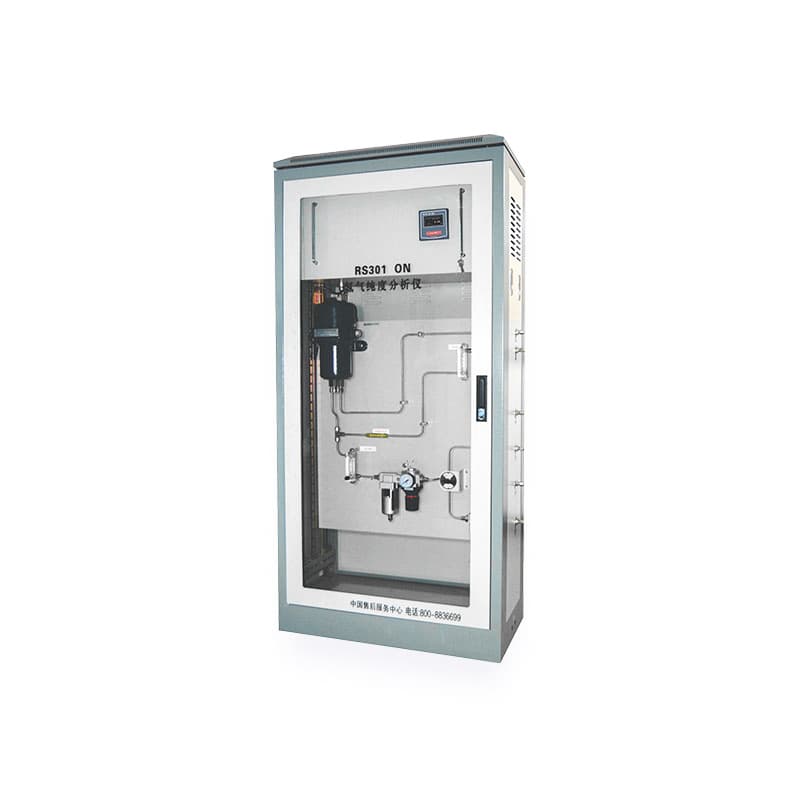

RS-301ON Hydrogen Purity Analyzer
H2

H2 Gas analyzers

RS-301ON Hydrogen Purity Analyzer

Fixed hydrogen purity analysis for hydrogen-cooled generator units with sampling, temperature compensation, and long-term stable monitoring.

Measurement range
CO2 in air 0 to 100%; CO2 in H2 0 to 100%; H2 in air 90 to 100%
Accuracy
Plus or minus 2% F.S
Output
4 to 20 mA, factory setting H2 in air 90 to 100%
Explosion-proof rating
Ex d IIC T6 Gb
Sample gas flow
0.5 SCFH
  • Fixed analyzer for hydrogen-cooled generator purity monitoring
  • Covers CO2 and H2 gas replacement measurement ranges

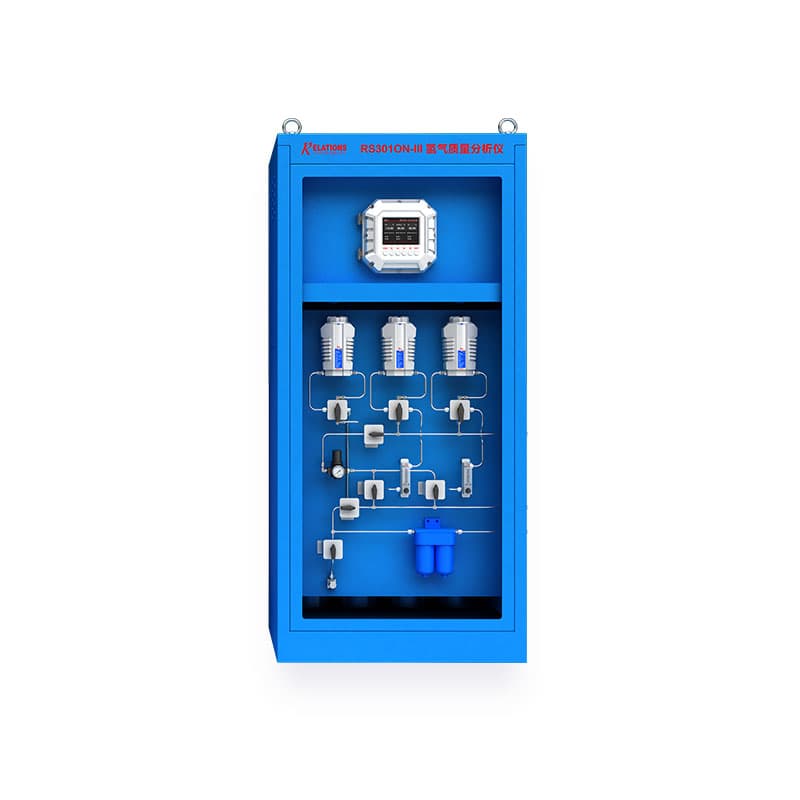

RS301ON-III Hydrogen Quality Analyzer
H2

H2 Gas analyzers

RS301ON-III Hydrogen Quality Analyzer

Integrated online hydrogen quality analysis for purity, humidity, oxygen content, and residual hydrogen monitoring in generator hydrogen systems.

Purity range
H2/Air 90 to 100%; CO2/H2 0 to 100%; CO2/Air 0 to 100%
Humidity range
-80 to 20 C
Oxygen range
0 to 25 %
Residual hydrogen range
0 to 4 %Vol
Purity error
Plus or minus 2% F.S
  • Integrated analysis of purity, humidity, oxygen, and residual hydrogen
  • Built for generator hydrogen system quality monitoring

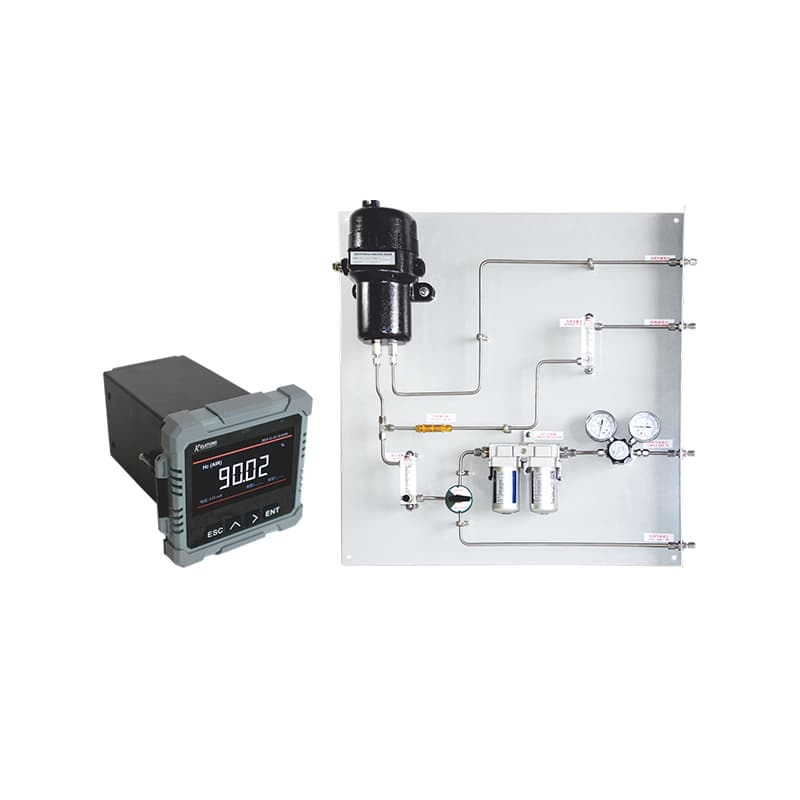

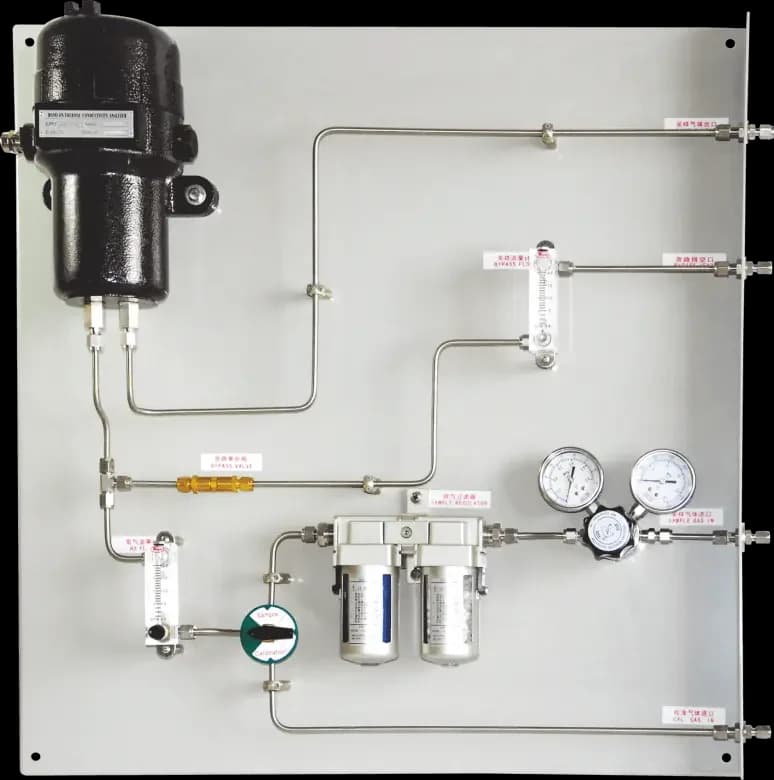

RS301ON Online Hydrogen Purity Analyzer
H2

H2 Gas analyzers

RS301ON Online Hydrogen Purity Analyzer

Fixed online hydrogen purity analysis for hydrogen quality monitoring and continuous industrial hydrogen process support.

Range
Available on request
Accuracy
Available on request
Explosion-proof rating
Available on request
Power supply
Available on request
Model
RS301ON
  • Continuous fixed hydrogen purity monitoring in industrial systems
  • Online analyzer format for process instrumentation

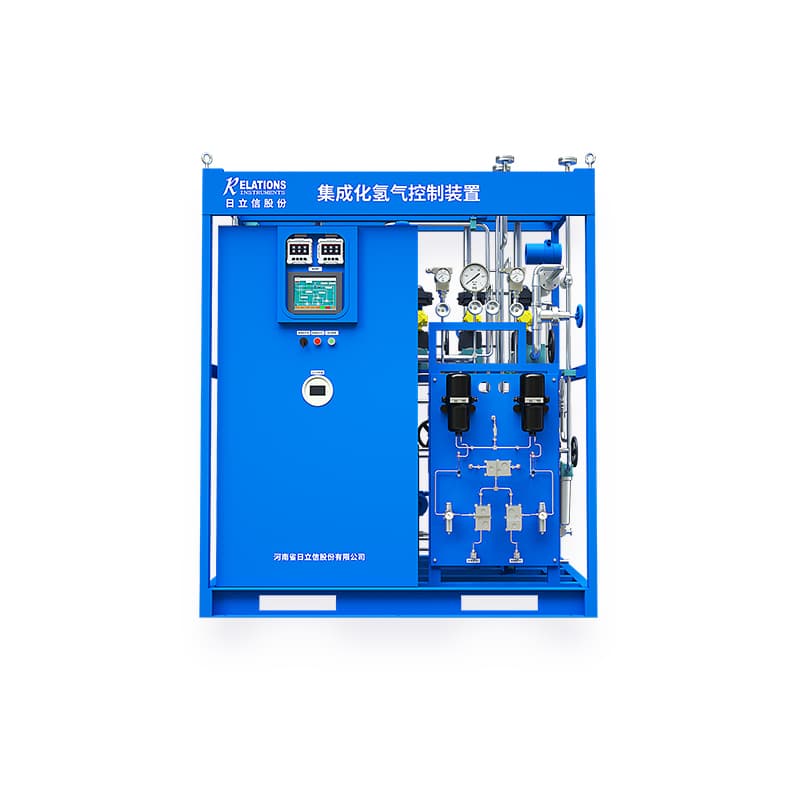

JCQK Integrated Hydrogen Control Unit
H2

H2 Process Monitoring

JCQK Integrated Hydrogen Control Unit

Integrated process control for generator hydrogen replacement, hydrogen filling, replenishment, discharge, and online hydrogen parameter monitoring.

Output
4 to 20 mA and switching signals
Outlet pressure
0.3 to 0.6 MPa
Inlet pressure
0.6 to 1 MPa
Power supply
220 VAC
Model
JCQK
  • Integrated hydrogen replacement, filling, replenishment, and discharge control
  • Supports online hydrogen parameter monitoring

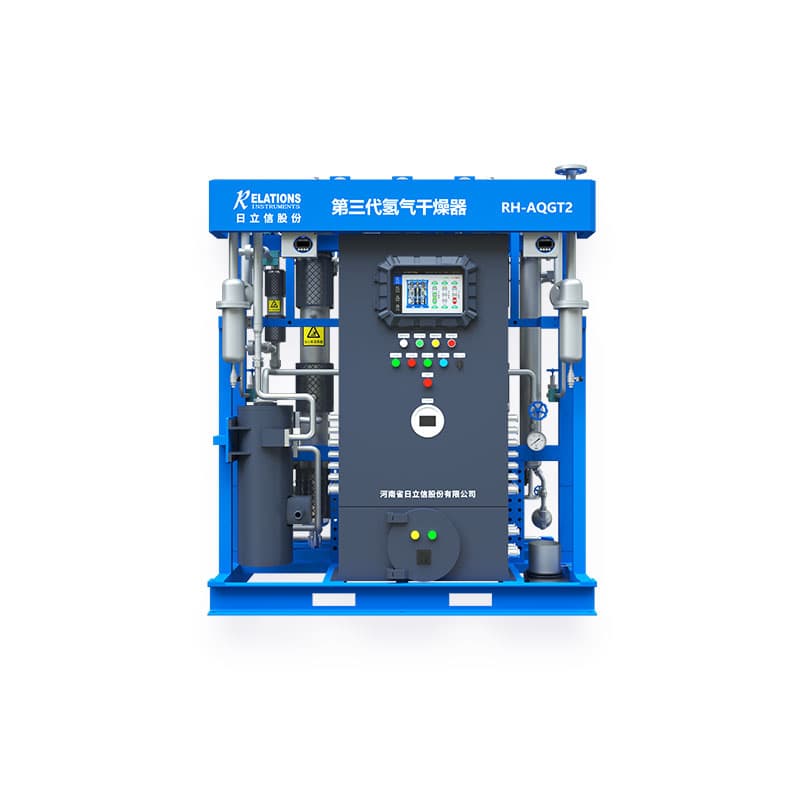

RH-AQG-III Hydrogen Dryer
H2

H2 Gas drying

RH-AQG-III Hydrogen Dryer

Third-generation hydrogen drying and humidity control for generator hydrogen systems, with purification support and three-tower adsorption design.

Capacity
100 m3/h (NPT)
Power
380 VAC, 50 Hz
Rated power
14 kW
Dew point range
-40 to +100 C
Output
4 to 20 mA
  • Hydrogen drying and humidity control for generator hydrogen systems
  • Supports gas dew point measurement and automatic drainage
RLHJ68-1 Hydrogen Purification Compensation Unit
H2

H2 Gas purification

RLHJ68-1 Hydrogen Purification Compensation Unit

Automatic hydrogen generation and replenishment for generator hydrogen pressure maintenance, with purification and safety monitoring support.

Hydrogen generation flow
1 to 2 Nm3/h
Model
RLHJ68-1
Type
Automatic hydrogen generation and compensation unit
Input voltage
380 VAC
Hydrogen purity
More than 99.99%
  • Automatic hydrogen generation and compensation for pressure maintenance
  • Hydrogen purity above 99.99% for generator support

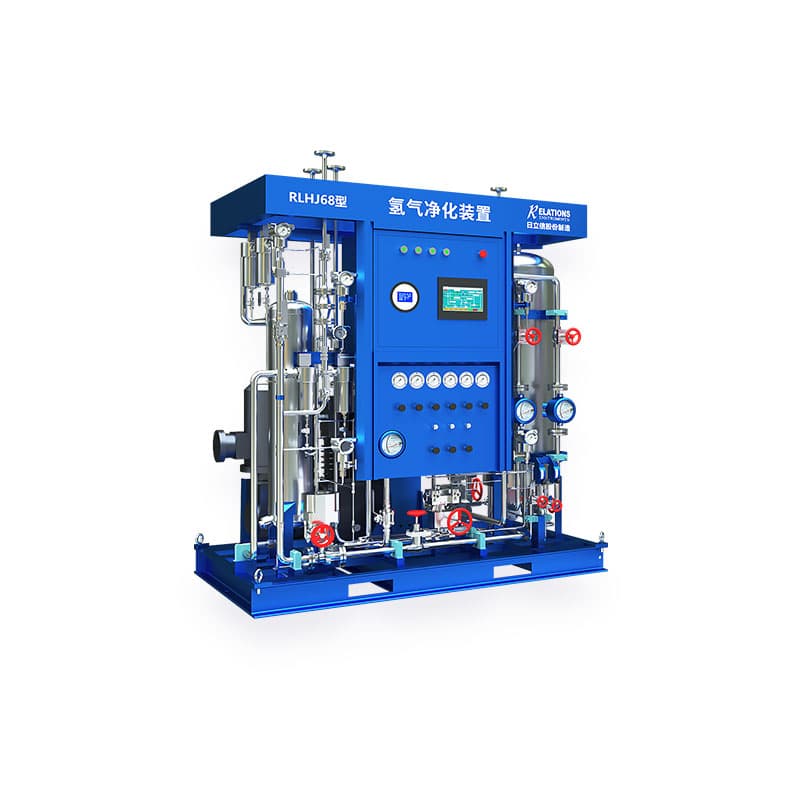

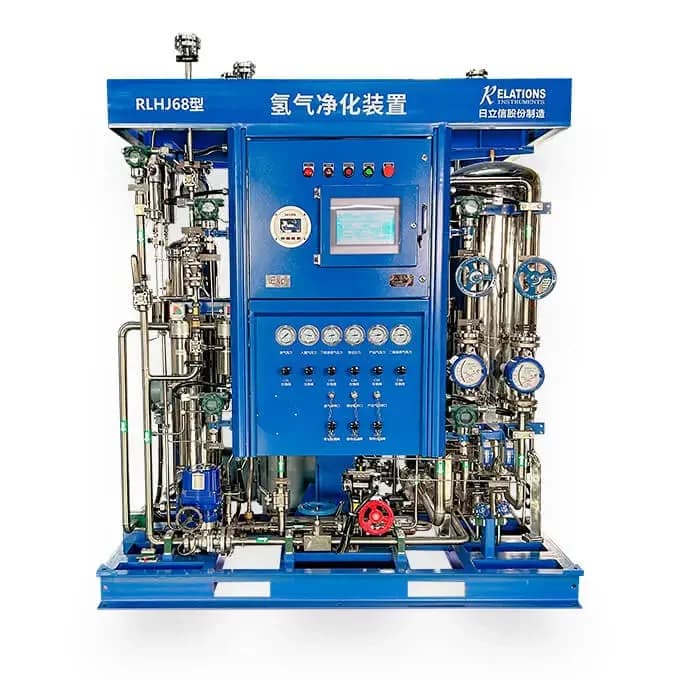

RLHJ68 Hydrogen Purification Unit
H2

H2 Gas purification

RLHJ68 Hydrogen Purification Unit

Hydrogen purification for separating oxygen, nitrogen, and carbon dioxide impurities while improving hydrogen purity in generator hydrogen systems.

Feed gas flow
60 m3/h
Inlet pressure
0.25 to 0.6 MPa
Power
9 kW
Power supply
380 VAC
Model
RLHJ68
  • Separates oxygen, nitrogen, and carbon dioxide impurities
  • Improves generator hydrogen purity to at least 99%

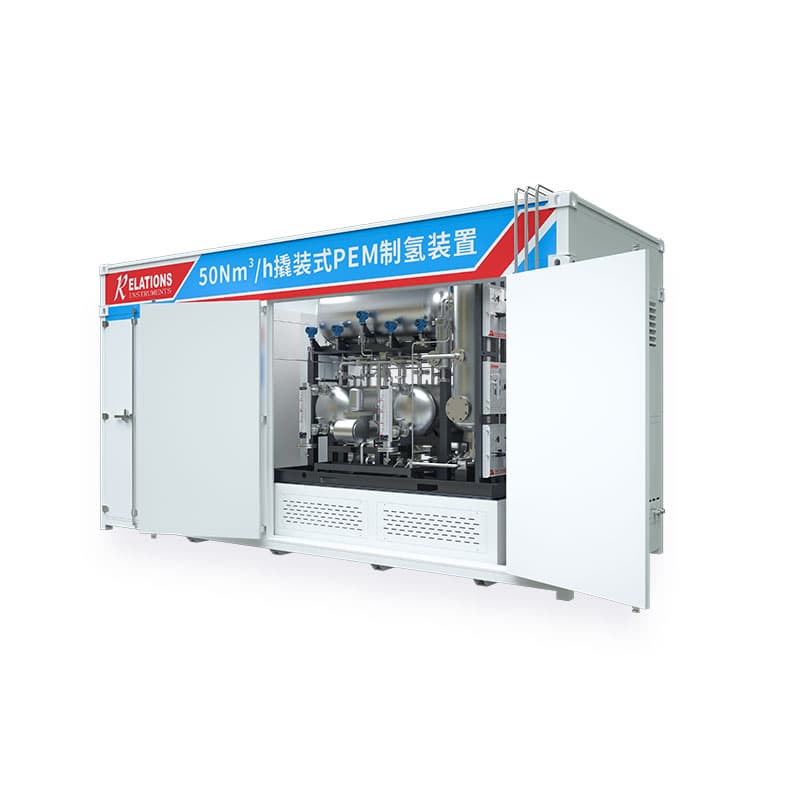

PEM Water Electrolysis Hydrogen Generation System
H2

H2 gas generation

PEM Water Electrolysis Hydrogen Generation System

Modular PEM hydrogen production for high-purity hydrogen output, fast renewable energy response, and scalable on-site clean hydrogen applications.

Capacity range
0.5 to 200 Nm3/h
Outlet pressure
1.6 MPa or 3 MPa, 16 bar or 30 bar
Technology
PEM water electrolysis hydrogen generation
Hydrogen purity
99.999%, with hydrogen purification
Operating range
10 to 100%
  • Modular PEM hydrogen generation for on-site clean hydrogen supply
  • High-purity output with hydrogen purification

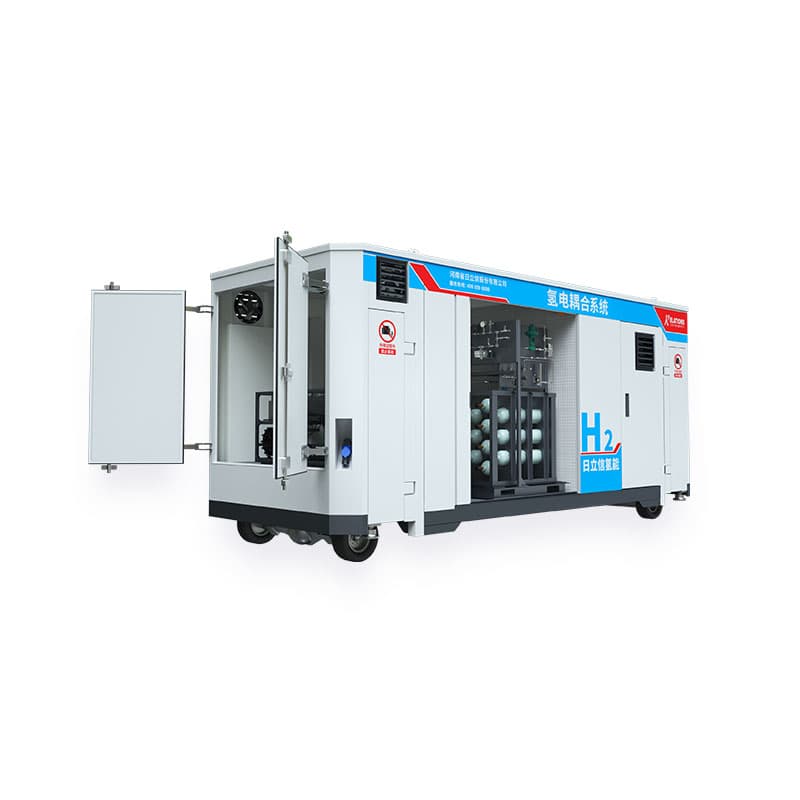

H2PEM-B Hydrogen Electric Coupled Energy Storage System
H2

H2 energy storage

H2PEM-B Hydrogen Electric Coupled Energy Storage System

Integrated hydrogen production, storage, and fuel cell power generation for long-cycle clean energy storage and containerized renewable energy applications.

Model
H2PEM-B
Hydrogen purity
99.999%
Production pressure
Less than 3 MPa, adjustable from 0 to 100%
Water consumption
11 L water per kilogram of hydrogen
Source water
Tap water
  • Combines hydrogen production, storage, and fuel cell generation
  • Supports long-cycle clean energy storage applications

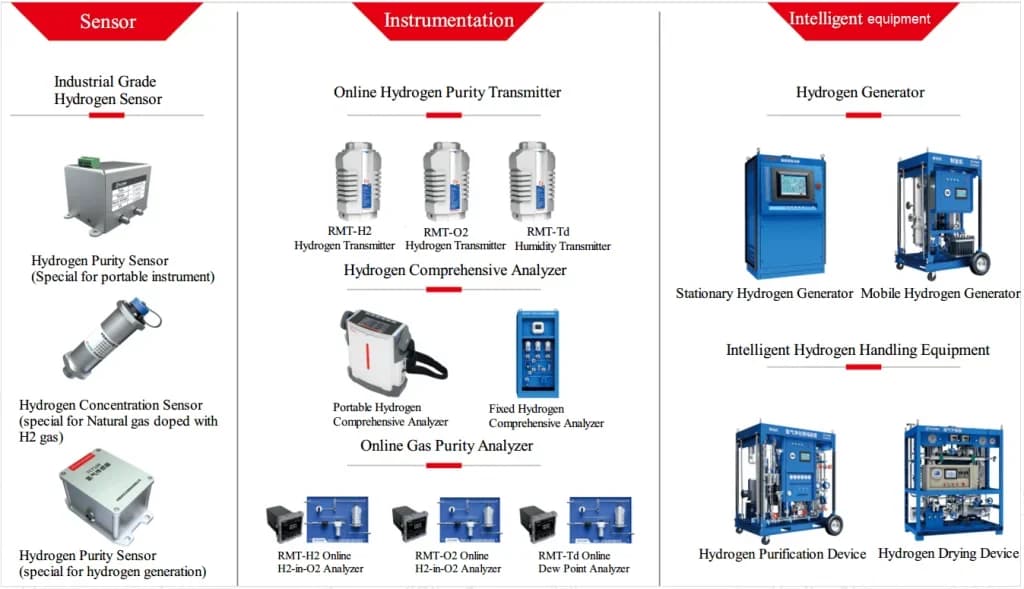

Hydrogen Sensor Instrumentation and Equipment
H2

H2 Sensors

Hydrogen Sensor Instrumentation and Equipment

Hydrogen product line covering hydrogen sensors, leakage monitoring, gas quality analysis, and purification equipment.

Gas
Hydrogen
Scope
Sensors / analyzers / systems
Scenario
Safety and quality control
  • Hydrogen sensors and instruments for industrial gas applications
  • Covers leakage monitoring, purity analysis, oxygen analysis, and purification
RA701 Portable Hydrogen Purity Analyzer
H2

H2 Gas analyzers

RA701 Portable Hydrogen Purity Analyzer

Portable hydrogen purity analyzer used for measuring purity, humidity, and oxygen content of hydrogen during normal operation.

Model
RA701
Parameters
Purity / humidity / oxygen
Format
Portable analyzer
  • Measures hydrogen purity, humidity, and oxygen content
  • Designed for normal operation checks and gas quality verification
RS301ON Online Hydrogen Purity Analyzer
H2

H2 Gas analyzers

RS301ON Online Hydrogen Purity Analyzer

Online hydrogen purity analyzer for continuous hydrogen gas quality monitoring in industrial operation.

Model
RS301ON
Parameter
Hydrogen purity
Format
Online analyzer
  • Continuous online hydrogen purity measurement
  • Supports real-time gas quality supervision

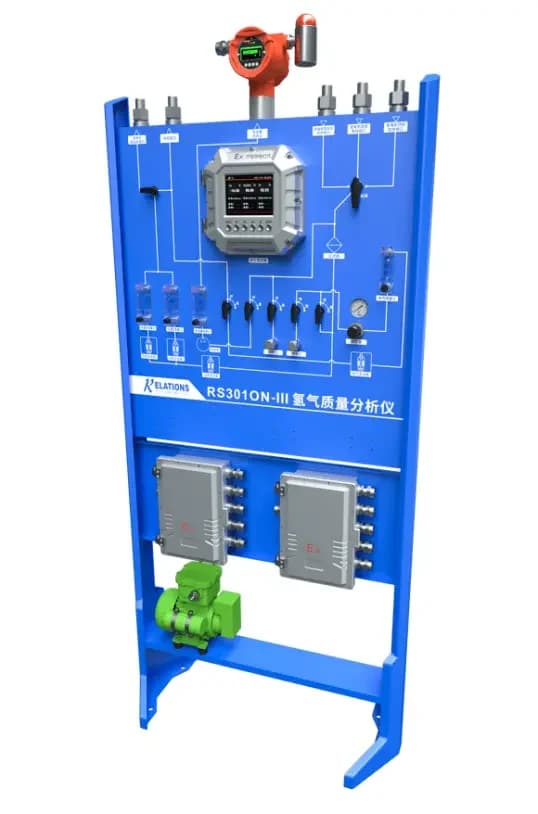

RS301EX Hydrogen Quality Online Analyzer
H2

H2 Gas analyzers

RS301EX Hydrogen Quality Online Analyzer

Online hydrogen quality analyzer for monitoring hydrogen gas condition in continuous industrial applications.

Model
RS301EX
Parameter
Hydrogen quality
Format
Online analyzer
  • Online supervision of hydrogen gas quality
  • Designed for continuous industrial operation

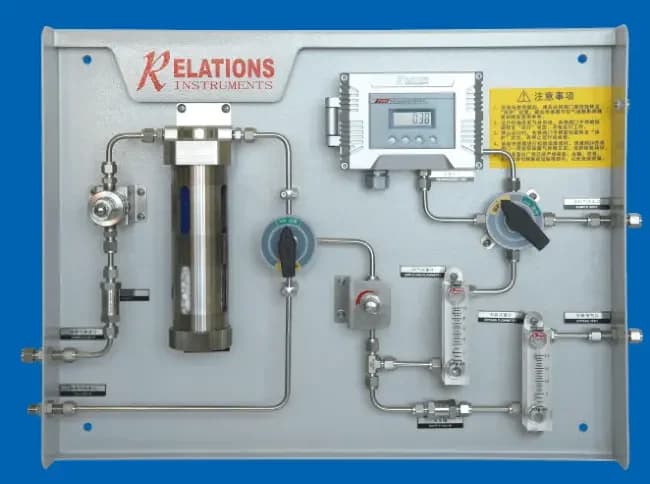

RA1630 Online Hydrogen Oxygen Analyzer
H2

H2 Gas analyzers

RA1630 Online Hydrogen Oxygen Analyzer

Online hydrogen oxygen analyzer for oxygen content monitoring in hydrogen-related gas systems.

Model
RA1630
Parameter
Oxygen in hydrogen
Format
Online analyzer
  • Online oxygen monitoring for hydrogen systems
  • Supports safety supervision in hydrogen process environments
Hydrogen Leakage Monitoring
H2

H2 Leakage monitoring

Hydrogen Leakage Monitoring

Hydrogen leakage monitoring solution for thermal power plants and hydrogen-cooled generator safety.

Gas
Hydrogen
Function
Leakage monitoring
Scenario
Generator cooling
  • Hydrogen leakage monitoring for thermal power plant generator systems
  • Supports safety supervision where hydrogen is used as cooling gas
NA1000D Multi-channel Hydrogen Leakage Monitoring System
H2

H2 Leakage monitoring

NA1000D Multi-channel Hydrogen Leakage Monitoring System

Multi-channel hydrogen leakage monitoring system for fixed multi-point safety monitoring in hydrogen facilities.

Model
NA1000D
Type
Multi-channel system
Function
Leakage monitoring
  • Multi-channel fixed hydrogen leakage monitoring
  • Designed for facility-wide safety supervision
NA1 Portable Hydrogen Leak Detector
H2

H2 Leakage monitoring

NA1 Portable Hydrogen Leak Detector

Portable hydrogen leak detector for field inspection, maintenance checks, and hydrogen safety troubleshooting.

Model
NA1
Type
Portable detector
Function
Hydrogen leak detection
  • Portable detection for hydrogen leakage inspection
  • Useful for routine maintenance and emergency troubleshooting
Hydrogen Sensor
H2

H2 Sensors

Hydrogen Sensor

Hydrogen sensor product line based on different physical or chemical principles for performance, cost, and scenario needs.

Gas
Hydrogen
Type
Sensor portfolio
Use
Detection and measurement
  • Hydrogen sensors based on multiple measurement principles
  • Supports different performance, cost, and installation requirements
PPS101 Pipeline Type Palladium Alloy Hydrogen Sensor
H2

H2 Sensors

PPS101 Pipeline Type Palladium Alloy Hydrogen Sensor

Pipeline type palladium alloy hydrogen sensor for hydrogen concentration sensing in pipeline applications.

Model
PPS101
Principle
Palladium alloy
Installation
Pipeline type
  • Pipeline type hydrogen sensor construction
  • Palladium alloy sensing route for hydrogen applications

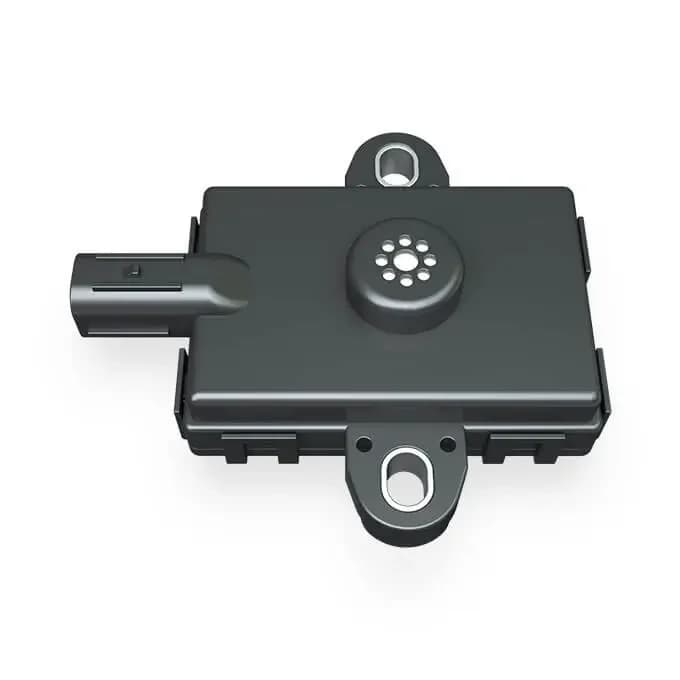

PDM200 Automotive Grade Hydrogen Concentration Sensor
H2

H2 Sensors

PDM200 Automotive Grade Hydrogen Concentration Sensor

Automotive-grade hydrogen concentration sensor for compact and reliable hydrogen detection applications.

Model
PDM200
Parameter
Hydrogen concentration
Grade
Automotive
  • Automotive-grade hydrogen concentration sensing
  • Compact sensor for hydrogen safety applications
TCS101 Thermal Conductivity Hydrogen Purity Sensor
H2

H2 Sensors

TCS101 Thermal Conductivity Hydrogen Purity Sensor

Thermal conductivity hydrogen purity sensor for hydrogen purity measurement and equipment integration.

Model
TCS101
Principle
Thermal conductivity
Parameter
Hydrogen purity
  • Thermal conductivity route for hydrogen purity sensing
  • Designed for hydrogen purity measurement applications
RLHJ68 Hydrogen Purification Device
H2

H2 Gas purification

RLHJ68 Hydrogen Purification Device

Hydrogen purification device for improving hydrogen gas quality in industrial hydrogen applications.

Model
RLHJ68
Function
Hydrogen purification
Goal
Gas quality improvement
  • Hydrogen purification for gas quality improvement
  • Supports industrial hydrogen quality management
