Product no. RF-151M
RF151M Mixed Gas Recovery Separation Unit
Recovery and separation unit for SF6/N2 mixed insulating gas, designed for online separation and SF6 reuse.
Key Product Data
- Gas
- SF6 / N2 mixed insulating gas
- Vacuum pump
- 64 m3/h
- Compressor
- Oil-free compressor, 15 m3/h
- Power supply
- AC 380 V, 50 Hz
- Model
- RF-151M
- Type
- SF6/N2 mixed gas recovery and separation unit
- Function
- Mixed gas recovery / online separation / SF6 reuse
- Operation
- Touch screen / button operation
Product Overview
RF-151M is a recovery and separation unit for SF6/N2 mixed insulating gas. As environmental requirements increase, SF6/N2 mixed gas is used more often in modern power equipment.
The unit can separate mixed gas online. The separated SF6 can be recovered into the equipment or an external cylinder, while the separated N2 can be discharged to the atmosphere.
RF-151M is suitable for GIS, GIL, transformers, environmentally friendly substations, power equipment manufacturers, and research applications using SF6/N2 mixed gas insulation.
Product Advantages
- Specially designed for SF6/N2 mixed insulating gas recovery and separation
- Membrane separation technology separates SF6 and N2 efficiently
- Separated SF6 can be recovered and reused to reduce new gas purchase cost
- Separated N2 can be discharged to the atmosphere after separation
- Oil-free compressor keeps the separated gas clean and free from oil pollution
- Vacuum compressor supports deep recovery of residual mixed gas
- PLC automatic control and touch screen operation make the process clear and easy to use
Technical Specifications
13 parameters- Gas
- SF6 / N2 mixed insulating gas
- Vacuum pump
- 64 m3/h
- Compressor
- Oil-free compressor, 15 m3/h
- Power supply
- AC 380 V, 50 Hz
- Model
- RF-151M
- Type
- SF6/N2 mixed gas recovery and separation unit
- Function
- Mixed gas recovery / online separation / SF6 reuse
- Operation
- Touch screen / button operation
- Special application
- SF6/N2 mixed gas insulated electrical equipment
- Separation method
- Membrane separation technology
- Control
- PLC automatic control
- Recovered gas
- SF6 recovered to internal equipment or external cylinder
- Separated gas
- N2 can be discharged to atmosphere after separation
Application and Selection Checklist
This product is listed for sf6/n2 mixed gas separation. Before selection, provide the following project information so the configuration can be reviewed against the actual operating conditions.
- Gas composition and operating conditions
- Required range, capacity, flow, or response
- Power supply, interfaces, and installation space
- Site environment and destination country
- Quantity, schedule, and operating workflow
- Required standards, drawings, tests, and certificates
Standards, Documentation, and Project Fit
Product suitability is determined by the selected model, configuration, operating conditions, interfaces, and destination requirements. A matching product in the same group is not automatically interchangeable.
Standards, declarations, calibration records, inspection documents, drawings, manuals, commissioning, training, and test scope vary by product and contract. State every required item in the inquiry and confirm it in writing before purchase.
Typical application descriptions on this page are selection references, not claims about a named customer installation. Final project fit requires review of the actual site data.
Frequently Asked Questions
What is RF151M Mixed Gas Recovery Separation Unit used for?
RF151M Mixed Gas Recovery Separation Unit is intended for sf6/n2 mixed gas separation. Recovery and separation unit for SF6/N2 mixed insulating gas, designed for online separation and SF6 reuse.
Which product group does RF-151M belong to?
RF-151M is listed in the SF6 Service carts product group within the Alternative arc quenching and insulating gases range.
What should be confirmed before selecting RF-151M?
Confirm the application, gas conditions, required performance, utilities, connection interfaces, site environment, quantity, destination, and required technical documents.
Are standards and certificates available for RF-151M?
Applicable standards, declarations, calibration or inspection records, and certificate availability depend on the selected model and destination. Confirm required documents in writing during the inquiry.
Related Selection Guides and Products

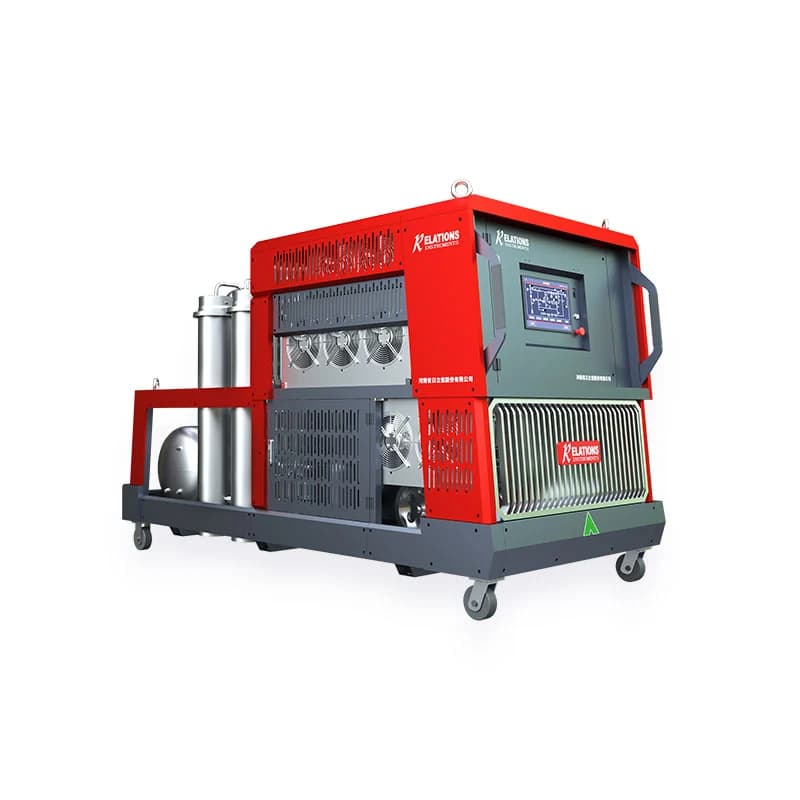

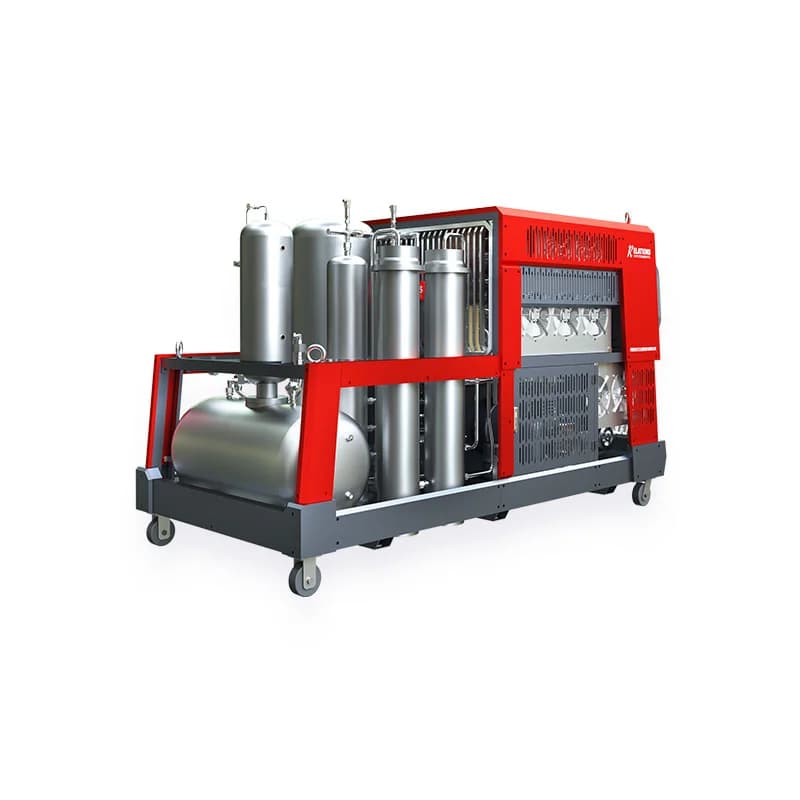

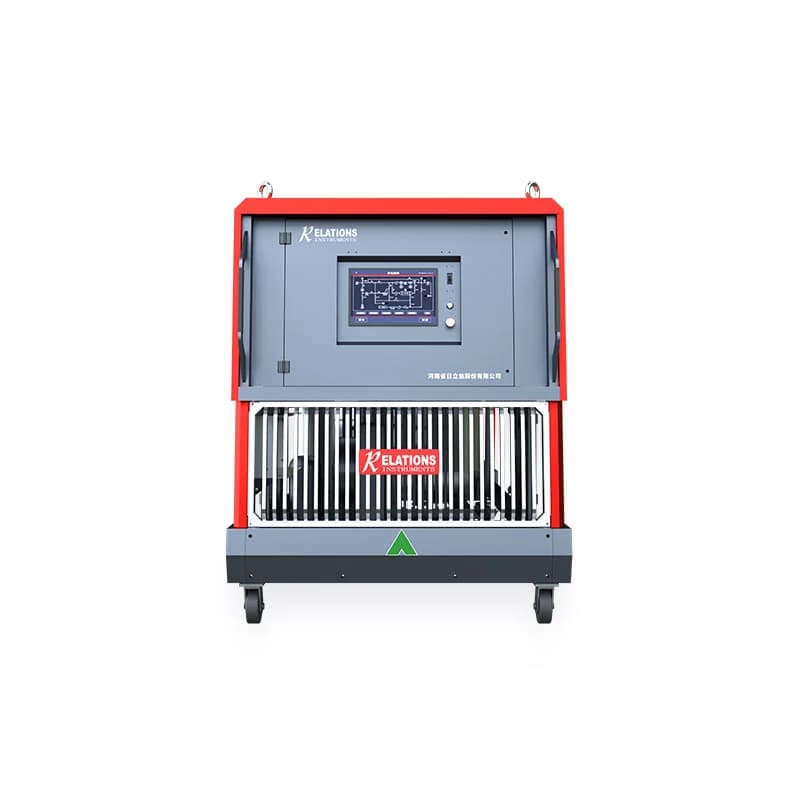

Product Images
